High conductivity copper cooled components for the steel industry

Having manufactured more than 15.000 pieces, Cecal’s plate coolers are installed in blast furnaces in Americas, Europe and Asia.

The precision of surface finishing, which allows a perfect contact with the furnace refractory bricks and the long term durability are features acknowledged by our clients throughout the world.

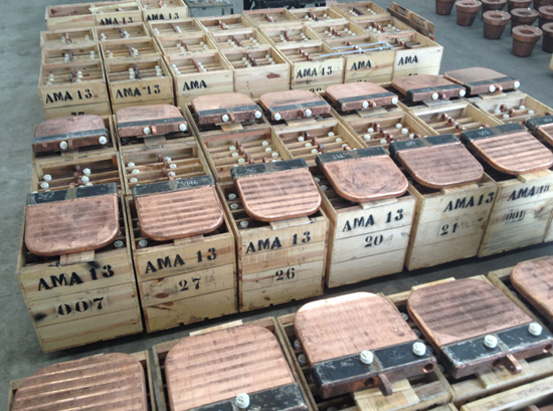

Plate coolers lots ready for exportation

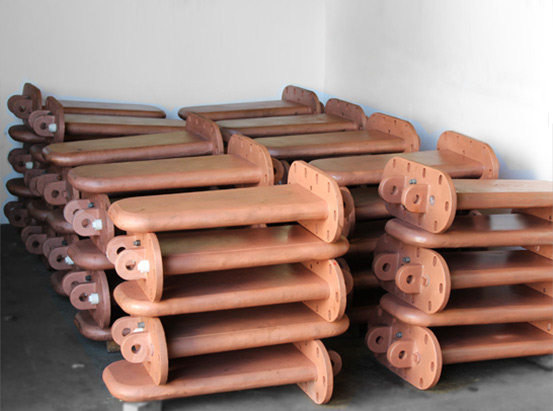

4 passes plate cooler

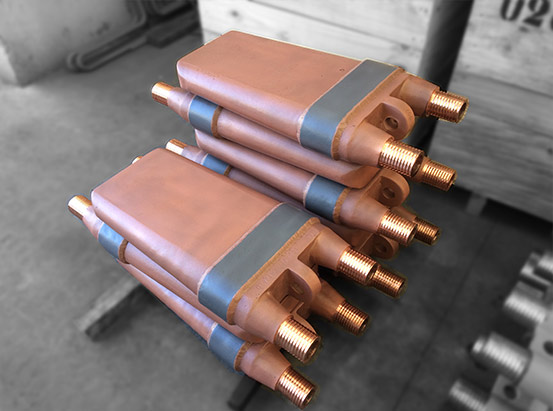

Plate coolers ready for exportation with connections for pipes

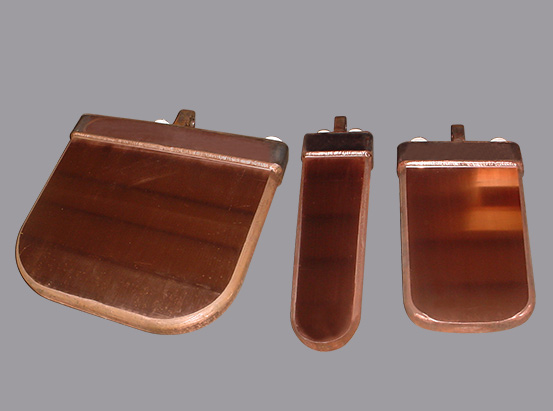

Plate coolers with steelband and machined faces with +/-200 microns tolerance. Casting quality proven by radiographic test on 100% of the body

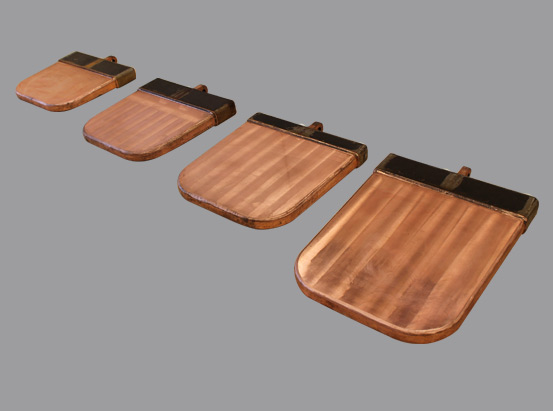

different geometries of Plate coolers

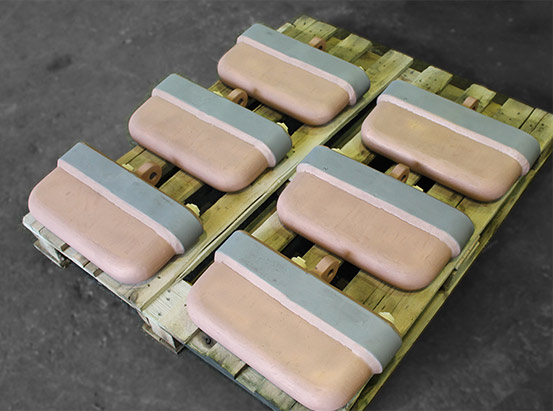

6 passes plate cooler with cut for internal channels view

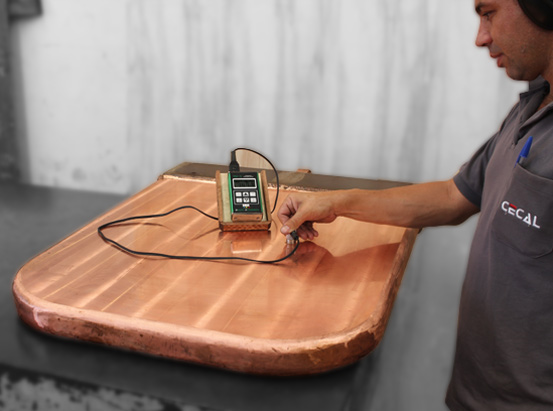

Wall thickness measurements using ultrasonic test
6 passes plate cooler with cut for internal channels view
The quality of Cecal’s plate coolers is proven through radiographic tests
